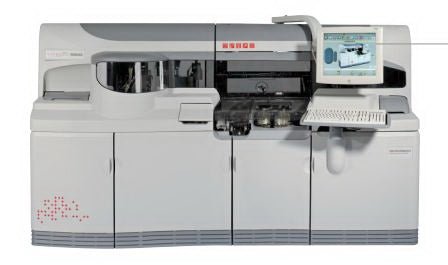

Ortho Clinical Diagnostics Integrated Chemistry Analyzer VITROS® 5600 11440 Onboard Assays

Ortho Clinical Diagnostics Integrated Chemistry Analyzer VITROS 5600 11440 Onboard Assays - M-989184-3766 | Each

$245,778.99
Packaging *

Ortho Clinical Diagnostics

Integrated Chemistry Analyzer

In Stock

M-989184-3766

-
+
secure_pay

Delivery - 7-10 Days, Ship Directly from Manufacturer

  • Measurement principle: Colorimetric/rate, potentiometric (direct ISEs), immuno-rate, turbidimetric, enhanced chemiluminescence
  • Calibration: Up to 25 lots per assay with automatic lot switching; microslide and microtip assays stable up to lot change; microwell stable for up to 28 days; random-access calibration; bar-coded calibrators for microslide and microwell assays
  • Minimum 35 μL dead volume
  • Sample containers: Universal sample trays accommodate: 5 mL, 7 mL, 10 mL collection tubes, 1.5 mL micro-collection containers, VITROS® microsample cups and 0.5 mL and 2 mL cups
  • Dilution capabilities: Auto reflex dilution; operator requested dilution; off-board dilution calculation
  • Operator interface: Color-coded graphical user interface; ergonomic flat, low-glare, LCD, 17 Inch touchscreen monitor; numeric keypad on monitor; detached keyboard for maximum flexibility; onboard documentation and animated help (V-Docs); onboard maintenance documentation
  • Data storage: Read/write disk drive for data input and archiving; USB flash drive (memory stick) capabilities; 5,000 sample programs; 25,000 samples with ability to archive and retrieve through CD-ROM or USB flash drive
  • 15 to 30°C/59 to 86°F Operating temperature, 15% to 75% RH ambient relative humidity, up to 2439 Meter/8000 Foot altitude

    • Item Id 989184
    MF ID 6802915
    Brand VITROS® 5600
    Manufacturer Ortho Clinical Diagnostics
    Application Integrated Chemistry Analyzer
    Dimensions 34.9 X 68 X 110 Inch
    Number of Tests 11440 Onboard Assays
    Power Source 200 to 240 V, 20 to 30 A With UPS, 47/63 Hz
    Readout Type 17 Inch LCD Display/Printer
    Sample Type Whole Blood / Serum / Plasma / Urine / CSF / Amniotic Fluid Sample
    Test Name Chemistry, TDM, DAT/Toxicology, Thyroid/Metabolic, Cardiology, Endocrine, Proteins, Oncology, Infectious Disease, Anemia, Prenatal, 10 User-Defined Chemistry Channels
    Throughput Up to 945 Tests / Hour
    Time To Results 2.5 Minute (Potentiometric), 6 Minute (Colorimetric), 8 Minute (Immuno-rate), 8 to 16 Minute (MicroTip), 16 to 73 Minute Results (MicroWell)
    UNSPSC Code 41115807
    User Interface Touch Screen, Keyboard
    Weight 2360 lbs.
